    HS840 ABB PROFIBUS Linking Device 4 Channel Head Station With Redundancy PLC Spare Parts 3BDH000307R0101

    Ask Lasest Price
    Brand Name : ABB
    Model Number : HS840
    Payment Terms : T/T, Western Union
    Supply Ability : 9999 Pieces per year
    Delivery Time : 2-3 working days
    • Product Details
    • Company Profile

    HS840 ABB PROFIBUS Linking Device 4 Channel Head Station With Redundancy PLC Spare Parts 3BDH000307R0101


    Product:HS840 ABB PROFIBUS Linking Device 4 Channel Head Station With Redundancy PLC Spare Parts 3BDH000307R0101

    Detail:

    Name:ABB Power ModuleModel:HS840
    Package:STANDARDWarranty:12 Months
    Gross Weight:2.2 Lbs / 35.2 Oz / 1kgPacking Size:7" X 7" X 4" (18 Cm X 18 Cm X 10 Cm)
    Lead Time:1~3 DaysQuality:100%Brand
    Product Name:Programmable Logic ControllerStock:Available
    Highlight:

    PLC Spare Parts 3BDH000307R0101

    ,

    HS840 Head Station With Redundancy

    ,

    ABB PROFIBUS Head Station With Redundancy


    HS840 ABB PROFIBUS Linking Device 4 Channel Head Station With Redundancy PLC Spare Parts 3BDH000307R0101



    A Linking Device consists of one head station and at least one power link module for establishing the connecton of PROFIBUS PA Segments to PROFIBUS DP. PROFIBUS is standardized accorting to EN 50 170/2. The head station supports all there defined transfer rates from 45.45 kBit/s up to 12 MBit/s.

    The head station provides one, two or four channels. PROFIBUS PA masters of each channel work independently of each other. The result of this is that reaction times can be reduced drastically. Up to 5 power link modules can be connected to each channel. Each power link module creates a new segment.

    The communication between the head station and the Power Link Modules is realized via removable terminal blocks.

    The communication is transparent. Each PA-subscriber is planned like a PROFIBUS DP subscriber and each PA device is directly addressed like a DP slave device. The head station and the power link modules don’t need to be planned.

    It is allowed to mount the head station, and the power link modules within zone 2.

    The head station HS 840 permits the operation with redundant transmission line on PROFIBUS DP side.

    The channels are working with 31.25 kBaud (Manchaster coded). This saves from additonal time delay within the Power Link Modules.


    Recommended Products:


    5STP3328L0003
    5STP18F1801
    5STP18F1800
    5STP04D4200
    5STP45N2800
    5STP45Q2800
    5STP4200 T553-800-4200
    5STP27H1800
    5STP03D6500
    3BHB001337R0002 UNS-0869A-P
    PM902F 3BDH001000R0001
    CI930F 3BDH001010R0001
    DSMB175 57360001-KG
    DSCS140 57520001-EV
    HIEE300936R0101 UFC718AE101
    HIEE300900R1
    HIEE450848R1
    HIEE451220R1
    PPC322BE HIEE300900R0001
    HIEE405179R0001
    HIEE400109R1
    HIEE220620R1
    HIEE305106R0001



    We have experienced staff, extensive testing , all the spare parts which we sold are with warranty period of one year, and they have undergone rigorous testing and certification!

    We have a large inventory of control system components. We also made a lot of new hardware and discontinued spare parts to help supporting your existing control systems.


    You might find you need spare parts in our data, we welcome you give valuable suggestions to us with our products at any time!


    We can offer you best price in the market!

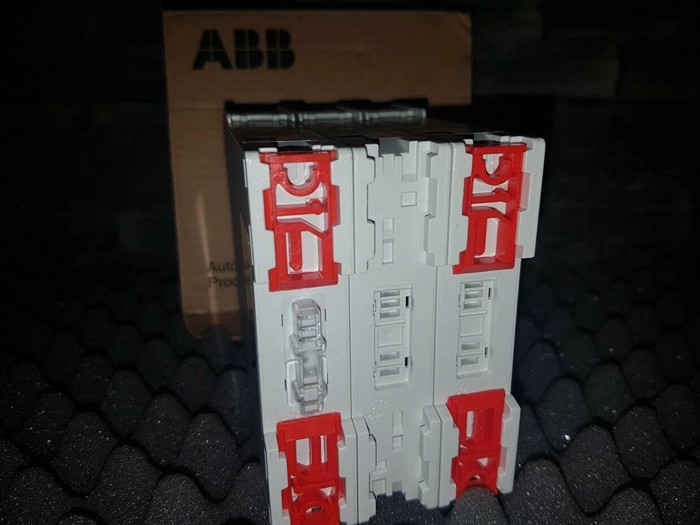

    Products Pictures:
