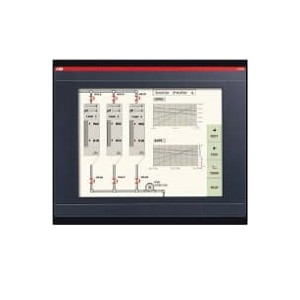

    ABB CP555 1SBP260179R1001 Control Panel, CP500soft needed

    Ask Lasest Price
    Brand Name : ABB
    Model Number : CP555
    Payment Terms : T/T, Western Union
    Supply Ability : 9999 Pieces per year
    Delivery Time : 2-3 working days
    • Product Details
    • Company Profile

    ABB CP555 1SBP260179R1001 Control Panel, CP500soft needed

    Product:ABB CP555 1SBP260179R1001 Control Panel, CP500soft needed

    ABB Type Designation:
    CP555
    Ambient Air Temperature:
    Operation 0 ... +50 °C
    Storage -20 ... +70 °C
    Battery Type:
    Portable
    CN8:
    84716070
    Communication:
    Depend on Driver
    Communication Interface:
    Ethernet with IFC ETTP
    Communication Speed:
    9.6 ... 57.6 kBd
    Country of Origin:
    France (FR)
    Customs Tariff Number:
    84716070
    Data Sheet, Technical Information:
    Declaration of Conformity - CE:
    Degree of Protection:
    IP65
    Display Type:
    TFT touch
    Environmental Information:
    Fieldbus Interface Type:
    Modbus RTUAC500_ModbusASCIIProfibus DP Slave (option)Modbus TCP_IPothers (contact us)
    Frame Size:
    Undefined
    Fuse Size:
    F6.3A
    Fuse Type:
    F6.3A
    GSD-file for PROFIBUS Communication:
    Gross Weight:
    3.1 kg
    Instructions and Manuals:
    Invoice Description:
    CP555 Control Panel, CP500soft needed
    Made To Order:
    No
    Memory Size:
    1600 kB
    Memory Size User Data:
    1600 kB
    Memory Size User Program:
    1600 kB
    Memory Type User Data:
    1600 kilobyte non-volatile RAM
    Memory Type User Program:
    1600 KB Flash EPROM
    Minimum Order Quantity:
    1 piece
    Mounting Type:
    Front face
    Mounting on DIN Rail:
    No
    Number of Characters Per Line:
    20128
    Number of Display Lines:
    18120
    Operating Mode:
    no
    Order Multiple:
    1 piece
    Power Consumption (@Pcons):
    24 V·A
    Power Supply:
    24 V DC
    Product Depth:
    114 mm
    Product Main Type:
    CP555
    Product Name:
    Control Panel
    Product Net Depth / Length:
    105 mm
    Product Net Height:
    250 mm
    Product Net Weight:
    3 kg
    Product Net Width:
    290 mm
    Product Type:
    PLC-CP500
    Profibus:
    With IFC PBDP
    Programming Software:
    CP500 Soft
    Quote Only:
    No
    Real-time Clock:
    Yes
    Release Type:
    V1.02
    Screen Color:
    256 colors
    Screen Resolution:
    480 pixel
    Screen Size:
    10.4 in
    Screen Type:
    TFT touch
    Security:
    password protection with 8 user levels
    Selling Unit of Measure:
    piece
    Serial Port 1 Type:
    PR,MODBUS,ASCII,others
    Serial Port 2 Type:
    PR,MODBUS,ASCII,others
    Service Life:
    50000 hour
    Short Description:
    Control Panel Touch screen 256 Colors TFT Graphi
    Short-Circuit Protective Devices:
    gG Type Fuses Integrated
    Software Function:
    alarm managementrecipe managementtrends
    Stocked At (Warehouses):
    Menden, Germany
    Supply Voltage:
    20 ... 30 V DC
    UL Certificate:
    USB Port 1 Type:
    no
    USB Port 2 Type:
    no
    Viewing Area Height:
    158.4 mm
    Viewing Area Length:
    211.2 mm
    WEEE B2C / B2B:
    Business To Business
    WEEE Category:
    5. Small Equipment (No External Dimension More Than 50 cm)
