DS200DDTBG2ABB GE LCI Auxiliary I/O Terminal Board

Brand Name :

General Electric

Model Number :

DS200DDTBG2ABB

Payment Terms :

T/T, Western Union

Supply Ability :

9999+Pcs+Year

Delivery Time :

2-3 working days

DS200DDTBG2ABB GE LCI Auxiliary I/O Terminal Board

Product:DS200DDTBG2ABB GE LCI Auxiliary I/O Terminal Board

Name: DS200DDTBG2ABB GE LCI Auxiliary IO Terminal Board
Brand: General Electric
Price: 1 USD

The DS200DDTBG2ABB is an LCI Auxiliary I/O Terminal Board. This PCB was created as a component for the Mark V system from GE. The Mark V was the second of the Speedtronic gas and steam turbine management systems to offer triple redundant back-ups on critical controls and protection parameters. This DS200DDTBG2ABB board's Mark V product series also includes features such as built-in diagnostics, online maintenance, and a direct sensor interface. The DS200DDTBG2ABB PCB featured on this personalized product page is actually not the original LCI Auxiliary I/O Terminal Board manufactured for placement in the larger Mark V Turbine Control System Series; that would be the DS200DDTBG2 parent printed circuit board missing all three of this DS200DDTBG2ABB product's significant product revisions.

Hardware Tips and Specifications

The DS200DDTBG2ABB is a high voltage board. Its function is to create system connections for auxiliary I/O signals. Given this specific intended Mark V Turbine Control System Series functionality, it should come as no true surprise that this DS200DDTBG2ABB product offering makes use of its own elevated series of functionality-encouraging hardware components and component specifications. The DS200DDTBG2ABB board receives power from and is connected to the DS200ADMA board, which is a daughterboard module located on the DS200DSPC digital signal processor control board.The DS200DDTBG2ABB is built with multiple inputs and outputs. These outputs include high voltage AC inputs (2,) high current signal inputs (6,) low current signal inputs (3,) 4-20 mA current loop inputs (up to 2,) and undedicated voltage inputs. The current loop inputs in this DS200DDTBG2ABB LCI Auxiliary I/O Terminal Board's assembly are reassigned from the CT or LEM input channels using jumpers. The DS200DDTBG2ABB board featured here also has four buffered analog outputs and two 4-20mA current outputs. The board also has sixteen digital Input/Outputs.

The DS200DDTBG2ABB PCB is built with 33 TP test points, used for signal measurement, as well as 17 LEDs (DS1-DS17.) The board includes twelve jumper switches with 3 positions each. The factory setting for these switches is on the 1-2 position. In terms of standard voltage-limiting hardware components, the DS200DDTBG2ABB LCI Auxiliary I/O Terminal Board makes use of two transformers, four relays, and fourteen transistors. The DS200DDTBG2ABB uses capacitors and resistors as well, and features an assembly secured by the normal style of PCB coating that it has been chemically-treated by. This DS200DDTBG2ABB Mark V Series product's internal assembly also has eight varistors and fifteen resistor network arrays. Finally, this DS200DDTBG2ABB printed circuit board has five terminal strips that vary from three screw positions to thirty-six screw positions, and has many integrated circuits, including a chip with board identification and hardware revision information. More information on the board functions, application data, features, and installation can be found in GEI-100219, a publication from General Electric that may be hard to retrieve through the internet given this DS200DDTBG2ABB product's series as a Mark V legacy series product offering. Before making a final purchase decision on this DS200DDTBG2ABB high-voltage LCI Auxiliary I/O Terminal Board, it is crucial to realize that its originally-introduced performance specifications and dimensions have been impacted through its inclusion of a full product revision table with two functional product revisions and an artwork configuration revision.

Frequently Asked Questions about DS200DDTBG2ABB

Which Mark V Series product group does this DS200DDTBG2ABB LCI Auxiliary I/O Terminal Board belong to?

This DS200DDTBG2ABB printed circuit board belongs to the relatively-uncommon second grouping of GE Mark V Series products, as evidenced by the inclusion of the G2 series grouping tag in the DS200DDTBG2ABB functional product number.

Would this DS200DDTBG2ABB LCI Auxiliary I/O Terminal Board be protected by any warranty following my original purchase?

Yes. Immediately upon your original purchase here at AX Control, this DS200DDTBG2ABB PCB and many other General Electric printed circuit boards would be deemed protected under our three-year guaranteed PCB warranty.

Our advantage brands:
BENTLY EPRO ALL SERIES OF PRODUCTS SPAR PARTS PROBE Proximitor
PLC : AB,ABB,GE,Schneider
DCS : ABB,Siemens MOORE,Foxboro,Westinghouse,YOKOGAWA
ESD : Triconex,HIMA,BENTLY,ICS Triplex
Excitation cards : ABB,GE

Recommended Products:

IC695CMU310RS

IC695CMM002

IC695CHS016

IC695CHS012

IC695ALG808

IC695ALG708

IC695ALG704

IC695ALG600

IC695ACC400

DS3800DDIB1B1C

IC698PSD300

IC698PSA350

DS200PCCAG8ACB

DS200PCCAG7ACB

DS200PCCAG7A

DS200PCCAG6ACB

DS200PCCAG5A

DS200LPPAG1AAA

DS200KLDCG1AAA

DS200KLDBG1ABC

DS200KLDBG1AAA

531X139APMAKM7

531X300C0MAAM5

531X132APGAAG1

531X139APMAXG2

531X139APMAPG2

531X171TMAAFG2

531X300CCHALG2

531X139APMAEG2

531X146BDHALG3

IS200TDBSH2A

IS200TDBSH2ABC

IS200TDBSH2AAA

IS210AEPSG1A

IS210AEBIH1ADC

IS200DVIBH1BAB

IS200DSVOH2BDB

IS210SCLSH1A

IS210AEBIH1ADB

Products Pictures:

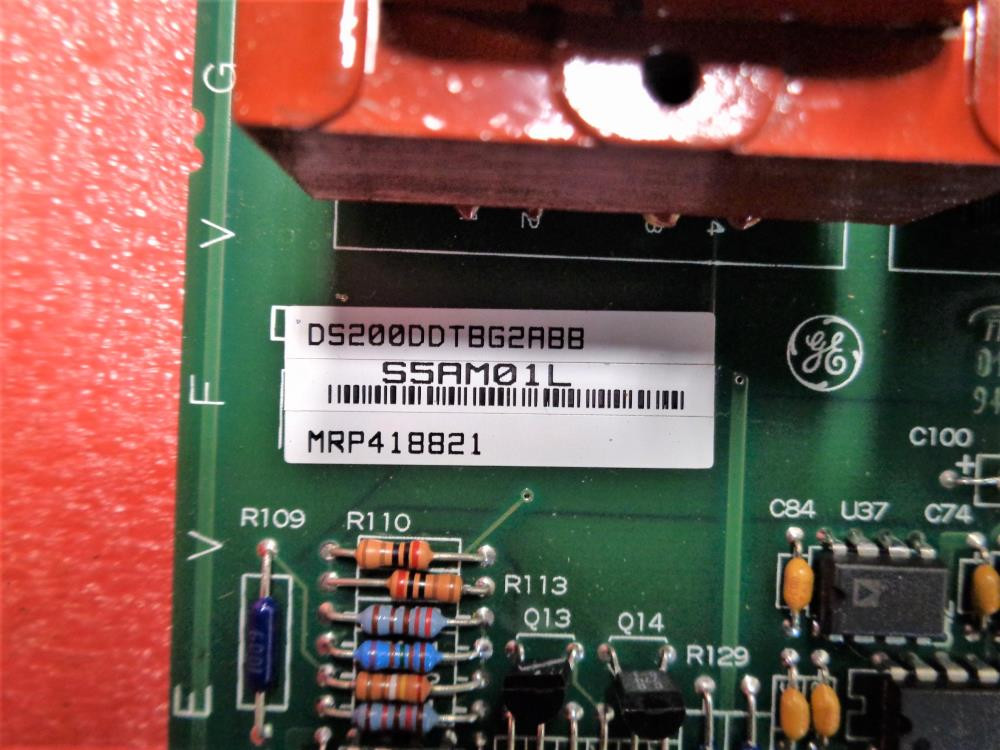

DS200DDTBG2ABB GE LCI Auxiliary I/O Terminal Board
