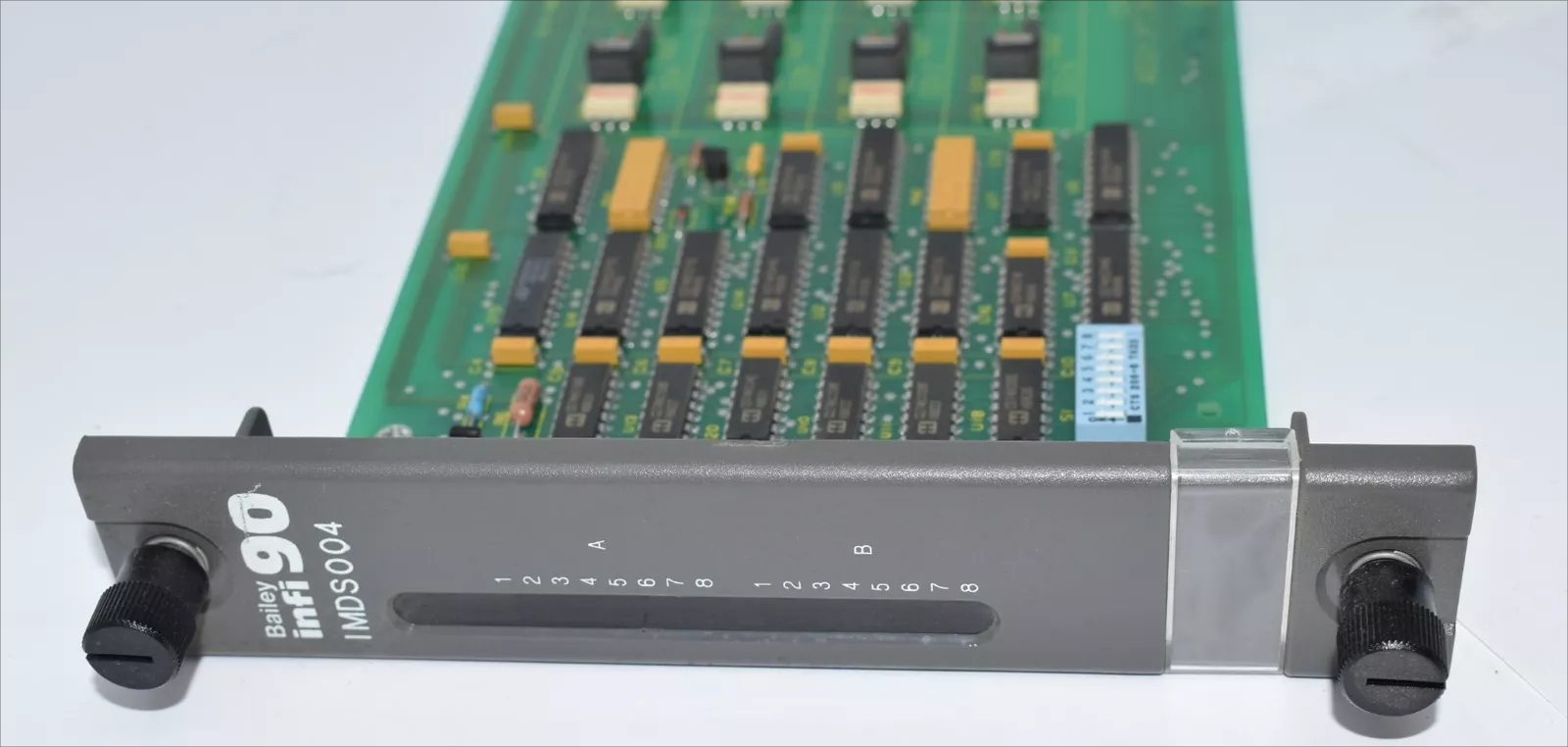

Product:ABB IMDSO04 Digital Output Slave Module

The Digital Slave Output module (IMDSO04) outputs sixteen separate digital signals from the Infi 90 Process Management System to a process.

Master modules use these outputs to control (switch) process field devices. This instruction explains the slave module features, specifications and operation.

It details the procedures to follow to set up and install a Digital Slave Output (DSO) module. It explains troubleshooting, maintenance and module replacement procedures.

There are four versions of the Digital Slave Output (DSO) module; this instruction discusses the IMDSO04.

The Digital Slave Output module (IMDSO04) outputs sixteen digital signals from the Infi 90 system to control a process.

It is an interface between the process and the Infi 90 Process Management System. The signals provide digital switching (ON or OFF) for field devices.

Master modules perform the control functions; slave modules provide the I/O.

This manual explains the purpose, operation and maintenance of the slave module. It addresses handling precautions and installation procedures.

Figure 1-1 illustrates the Infi 90 communication levels and the position of the Digital Slave Output (DSO) module within these levels.
