    ABB LD 800 HSE FOUNDATION Fieldbus Linking Device LD 800HSE

    Ask Lasest Price
    Brand Name : ABB
    Model Number : LD 800 HSE
    Payment Terms : T/T, Western Union
    Supply Ability : 9999 Pieces per year
    Delivery Time : 2-3 working days
    • Product Details
    • Company Profile

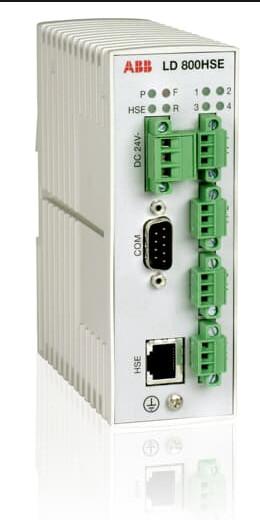

    ABB LD 800 HSE FOUNDATION Fieldbus Linking Device LD 800HSE


    Product: ABB LD 800 HSE FOUNDATION Fieldbus Linking Device LD 800HSE Factory new packaging


    The LD 800HSE linking device serves as a gateway between the field devices on the H1 links and the HSE subnet.

    LD 800HSE enables the access to field devices connected to the FOUNDATION Fieldbus (FF) from supervisory and control systems as well as management consoles. The device is qualified for redundant use, where the corresponding H1-ports of two Linking Devices are connected to one H1 link. A separate redundancy link between primary and secondary Linking Devices ensures reliable failover and monitoring of redundancy.

    Two different versions are available, one for safe areas and one for hazardous areas.


    Benefits

    • Provides link between the FF’s High Speed Ethernet (HSE) protocol and up to four H1 links
    • Transparent configuration of connected H1 devices from host system
    • Allows access to blocks in H1 devices (Client/Server)
    • Four Independent H1 Link Masters (LAS)
    • Publish/Subscribe (H1) (with up to 4 sub-cycles)
    • Republishing of data from one H1 link into another or from H1 to HSE
    • Firmware update via download
    LD 800HSE Technical Data
    Mechanical designDimensions(length x height x width)
    47 x 131 x 111 mm,
    mounted on DIN rail 35 mm
    Weightapprox. 0.4 kg
    Degree of protectionIP 20
    Environmental conditionsOperating temperature0° C ... +55° C,
    non-vertical mounting and hampered air
    convection may reduce upper temperature limit
    Storage temperature−20° C ... +70° C
    Relative humidity0% ... 95%, non-condensing
    Ethernet interfaceNumber of channels1
    PortEthernet 10BASE-T/100BASE-TX, TJ45
    Transfer rates10 Mbit/s or 100 Mbit/s (autosensing)
    H1 Fieldbus InterfaceNumber of channels4
    PortsFF H1 3-pole screw terminals (pluggable)
    transformer coupling
    galvanically isolated
    Physical layer profiletype 114, standard power signalling, separately powered, not intrinsically safe
    Transfer rate31.25 kbit/s
    Serial InterfacePort9-pole SubD male RS-232, 115.2 kbit/s
    CertificationsCE compliance acc. to EMC Directive 2004/108/EG (EMC), 2006/95/EG (Low Voltage) and 94/9/EG (ATEX)
    Electro Magnetic Compatibilty (EMC) acc. to. FCC Part 15 Subpart B Class A,
    VCCI Class 2 Information Technology Equipment 2002
    Shock and Vibration acc. to DIN IEC68 Part 2
    G3 coated acc. to ANSI/ISA 71.04, EN60068-2-60
    Certifications (LD 800HSE EX only)

    Hazardous Location Certification:
    UL Class I, Division 2, Groups A, B, C, D
    IECEx Ex nA IIC T4 Gc
    ATEX II 3G Ex nA IIC T4 Gc


    We can offer you best price in the market!
