Product:Bailey ABB IMDSO14 Digital Output Module

Spare Parts IMDS014

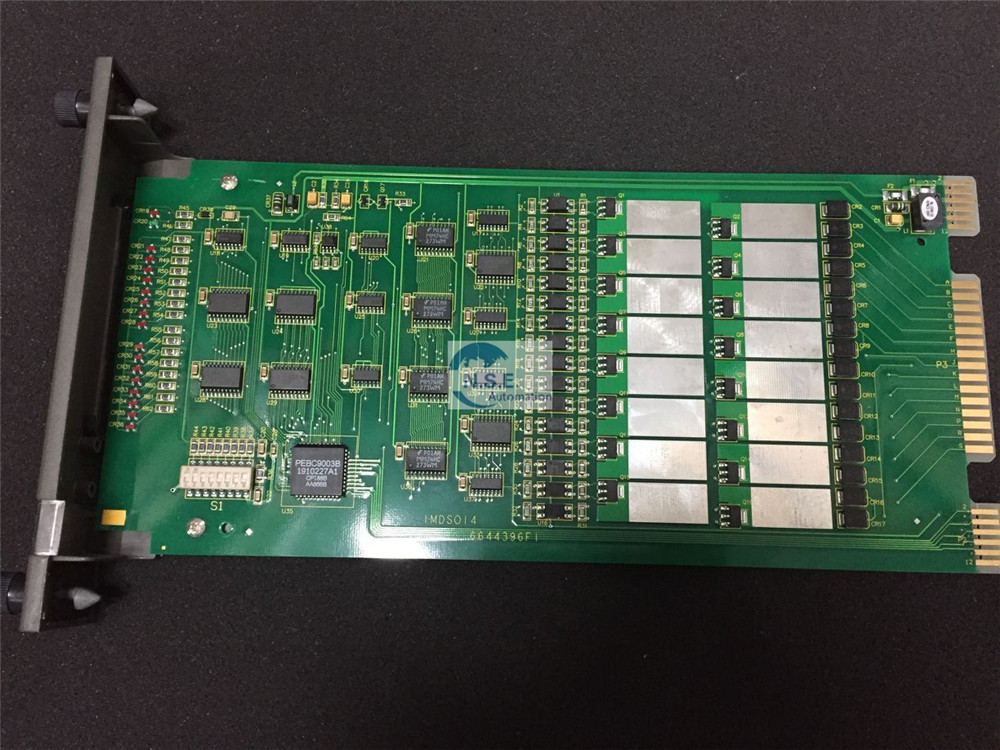

The IMDSO14 Digital Output module outputs 16 separate digital signals from the INFI 90® OPEN Strategic Process Management System to a process. These digital outputs are used by control modules to control (switch) process field devices.

There are five versions of the digital output module.

• IMDSO01/02/03.

• IMDSO14.

• IMDSO15.

This manual covers the (IMDSO14). The difference between the IMDSO14 module and the IMDSO01/02/03 is in the output circuitry, switching capabilities, and EMI protection circuitry. Refer to product instruction I-E96-310 for information on the IMDSO01/02/03.

The difference between the IMDSO14 module and the IMDSO04 module is in the EMI protection circuitry. Additionally, the IMDSO14 module will handle 24 or 48 VDC load voltages; the IMDSO04 is for 24 VDC only. Refer to product instruction I-E96-313 for information on the IMDSO04 module. The IMDSO14 module may be used as a direct replacement for the IMDSO04 module.

The IMDSO15 module provides electromechanical relay contacts for field devices. Refer to product instruction WBPEEUI240754A0 for information on the IMDSO15 module.

This instruction explains the IMDSO14 digital output module specifications and operation. It details the procedures necessary to complete setup, installation, maintenance, troubleshooting and replacement of the IMDSO14 digital output module.
