Product:Bently Nevada 3500/20 Rack Interface Module
125744-02+125768-01

The Rack Interface Module (RIM) is the primary interface to the 3500 rack. It supports a proprietary protocol used to configure the rack and retrieve machinery information. The RIM must be located in slot 1 of the rack (next to the power supplies).
The RIM supports compatible Bently Nevada external communications processors such as TDXnet, TDIX, and DDIX. While the RIM provides certain functions common to the entire rack, the RIM is not part of the critical monitoring path and has no effect on the proper, normal operation of the overall monitoring system. One RIM is required per rack.
For Triple Modular Redundant (TMR) applications, the 3500 System requires a TMR version of the RIM. In addition to all the standard RIM functions, the TMR RIM also performs "monitor channel comparison." The 3500 TMR configuration implements monitor voting using the setup specified in the monitor options. Using this method, the TMR RIM continually compares the outputs from three (3) redundant monitors. If the TMR RIM detects that the information from one of those monitors is no longer within a configured percentof the information of the other two monitors, it will flag that the monitor is in error and place an event in the System Event List.

Spares
125744-02
Standard Rack Interface Module
125744-01
TMR Rack Interface Module
135031-01
RIM I/O Module with Modem
Interface
125768-01
RIM I/O Module with RS232/RS422
Interface
125760-01
Data Manager I/O Module
04425545
Grounding Wrist Strap (single use)
00801286
Real-Time Clock IC
128755-01
Firmware IC (for PWA 125744-01 Rev P or later, or for PWA 125744-02 Rev N or later)
00580441
Connector Header, Internal Termination, 3-position, Green
00580436
Connector Header, Internal Termination, 6-position, Green
129768-01
RIM Operation and Maintenance Manual

Hot sells Products:
3500/20-01-01-00
3500/20-01-02-00
3500/20-02-02-00
3500/15
3500/20
3500/22M
3500/25
3500/32
3500/33
3500/40M
3500/42M
3500/45
3500/15 125840-01 /125840-02
3500/20 125768-01
3500/22M 146031-01
3500/25 125800-01/135473-01
3500/32 125720-01
3500/33 149992-01
3500/40M 125680-01/135489-04
3500/42M 128229-01
3500/50M 133442-01/136703-01
3500/53 133396-01/125736-01
3500/60 133819-01
3500/64
3500/92 125736-01/136188-02
3500/93 133323-01

We supply :
BENTLY EPRO ALL SERIES OF PRODUCTS SPAR PARTS PROBE Proximitor
PLC : AB,ABB,GE,Schneider
DCS : ABB,Siemens MOORE,Foxboro,Westinghouse,YOKOGAWA
ESD : Triconex,HIMA,BENTLY,ICS
Excitation cards : ABB,GE

Datasheet Download link:

3500-20.pdf

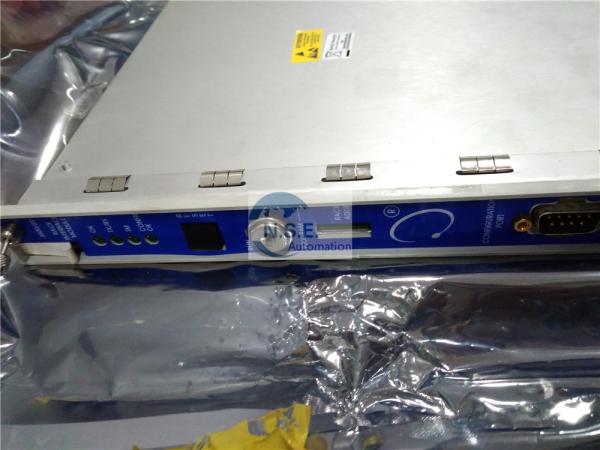

Photos:
